PRJ_01 · CAMPUS_LAN

Campus LAN

This is a fully functional network, available on GitHub, and modeled after the hierarchical "Campus LAN" design model. It has a stupid, ill-advised number of user endpoints and is functionally staged for an expansion that includes a 2nd core switch (this will connect to a 2nd ISP). HSRP will then be implemented to provide failover for the core switches.

Open design guide (external)

Current working topology

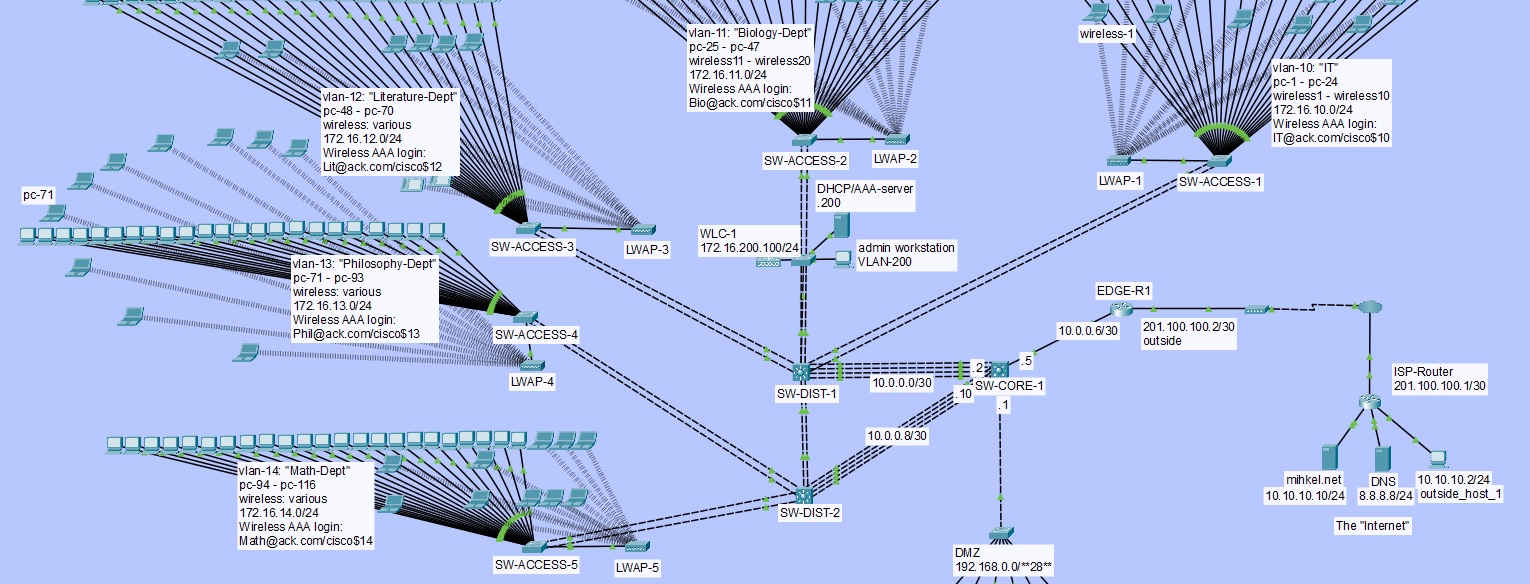

Campus LAN topology overview with color coding
Network features
Wired 120 endpoints · 5 departmental VLANs
Wireless 50 endpoints · 5 SSIDs
Security 802.1x authentication, RADIUS server
Aggregation L2 LACP access→dist (×2) · L3 LACP dist→core (×4)
Backlog HSRP core pair · hardening checklist
Image gallery

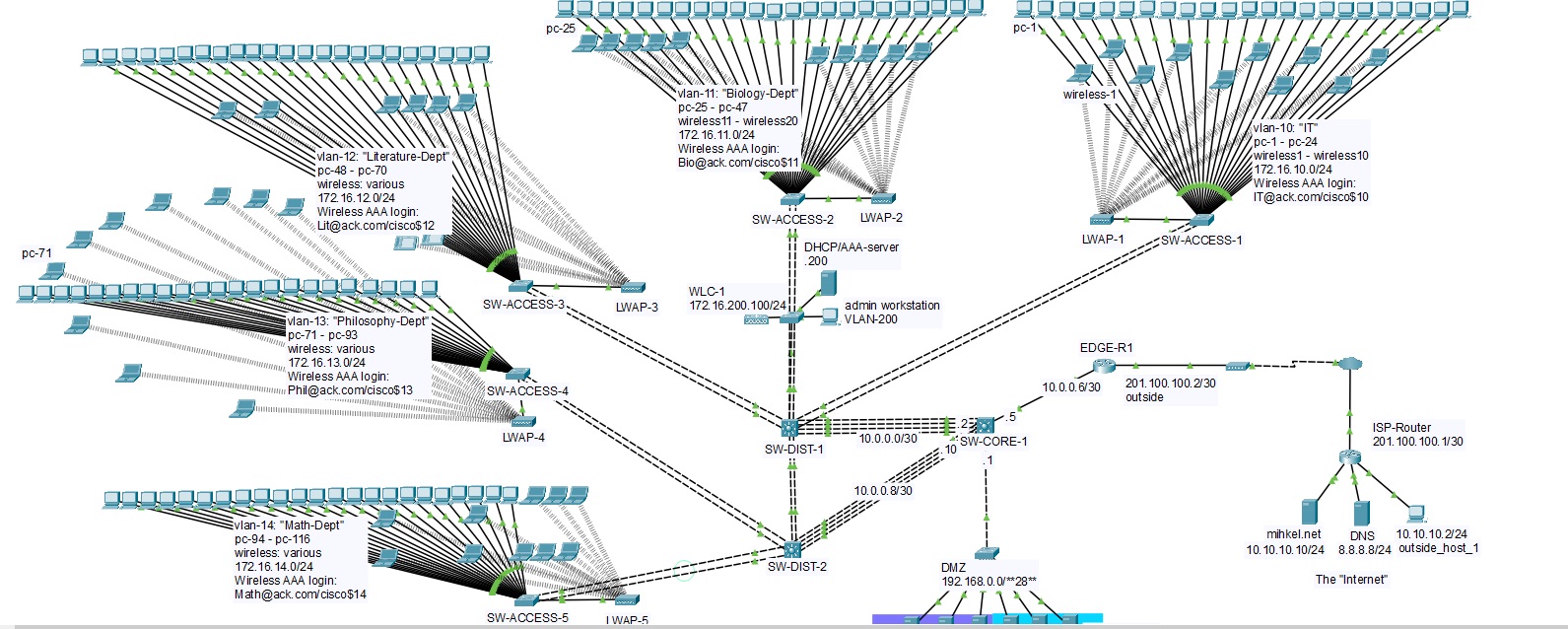

Topology
topology.jpg — open full size

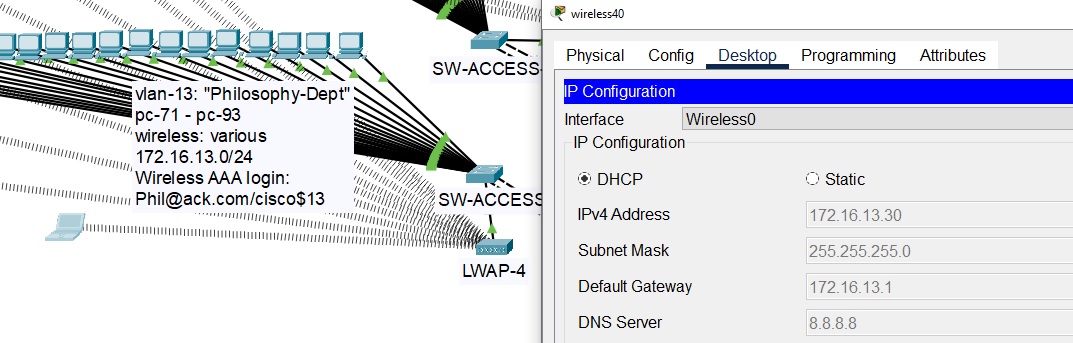

Wireless configuration detail
wireless-40.jpg — open full size
Wireless user client setup
wireless-user.jpg — open full size

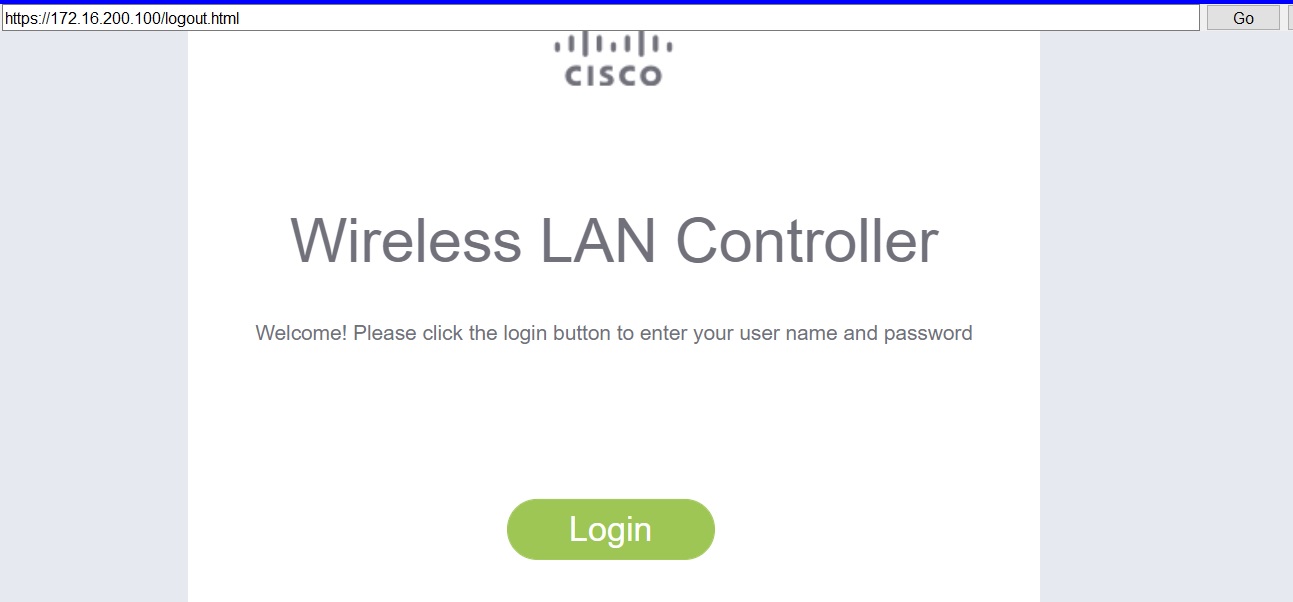

Wireless LAN controller login page
WLC-loginPage.jpg — open full size

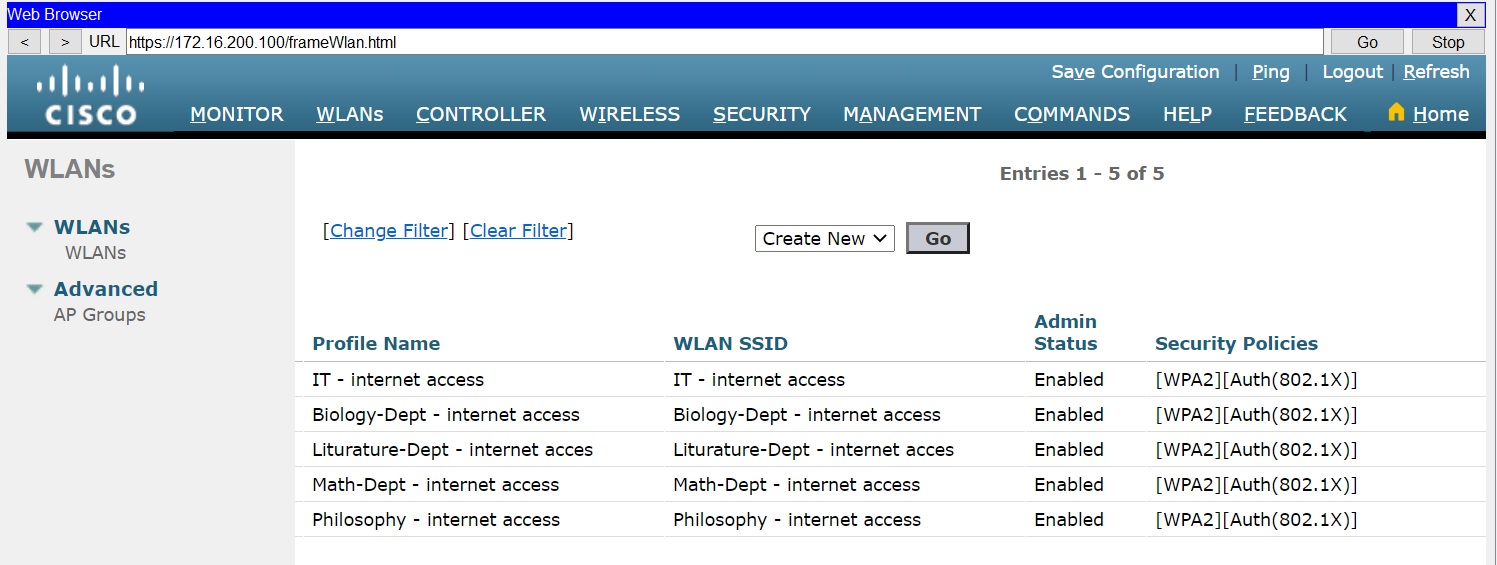

WLANs
wlans.jpg — open full size
Core uplink
uplink.jpg — open full size
GitHub

github.com/mihkel-bonafide/Campus-LAN — Packet Tracer labs, configs, and README on the public repo.
